Product Details
＋

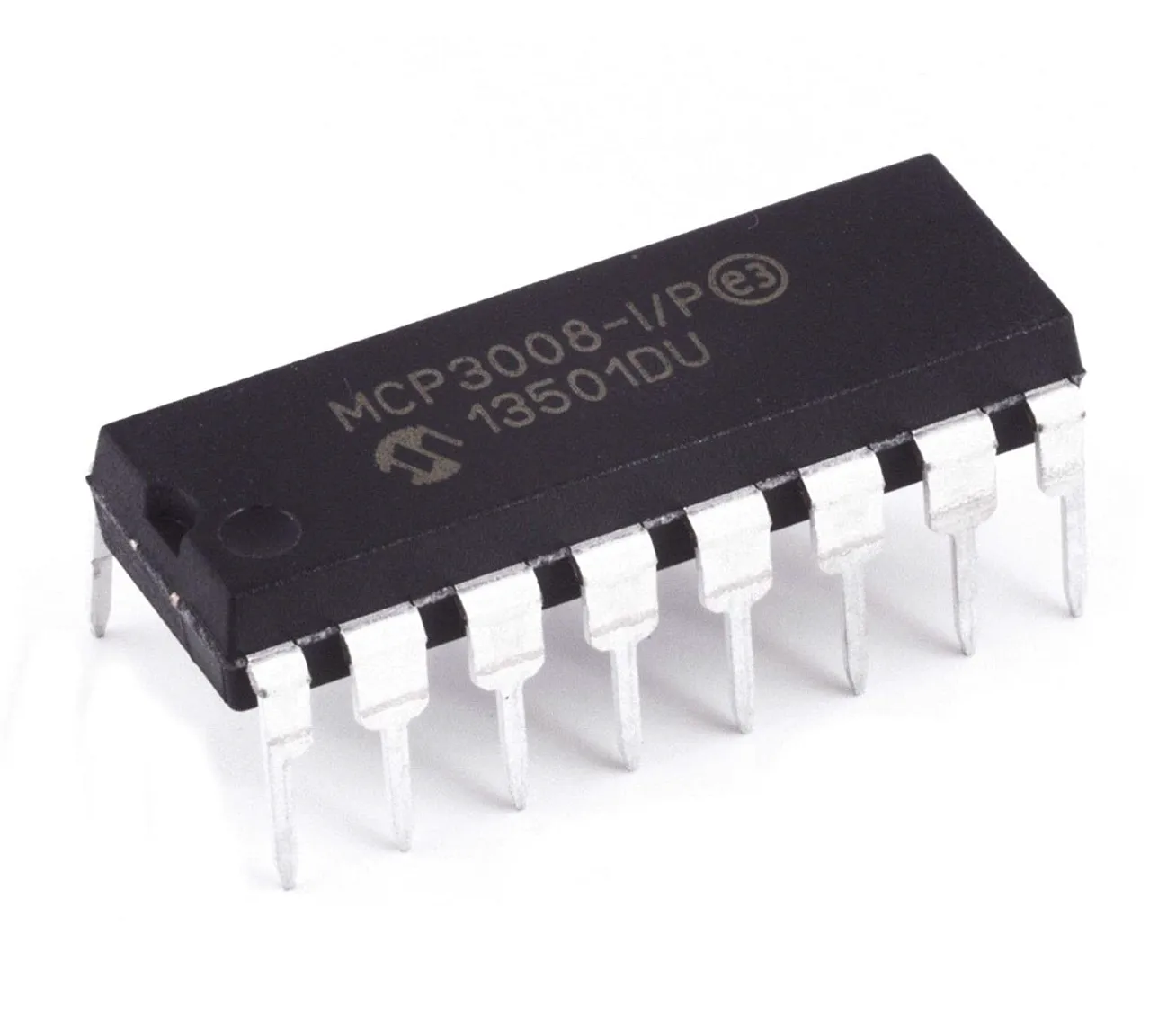

The MCP3008 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3008 features a successive approximation register (SAR) architecture and an industry-standard SPI serial interface, allowing 10-bit ADC capability to be added to any PIC microcontroller. The MCP3008 features 200k samples/second, 8 input channels, low power consumption (5nA typical standby, 425µA typical active), and is available in 16-pin PDIP and SOIC packages. Applications for the MCP3008 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.
FEATURES:
- The MCP3008 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications.
- Eight single-ended channels & -40 to 85°C temperature range, 10-bit resolution & 200 ksps sample rate at 5V
- SPI interface & AEC-Q100 Grade 3 & Max. INL ± (LSB) 0.5
- ±1 LSB DNL & Max. Supply Current (µA) 500
- ±1 LSB INL & Input Voltage Range (V) 0 to 5.5
